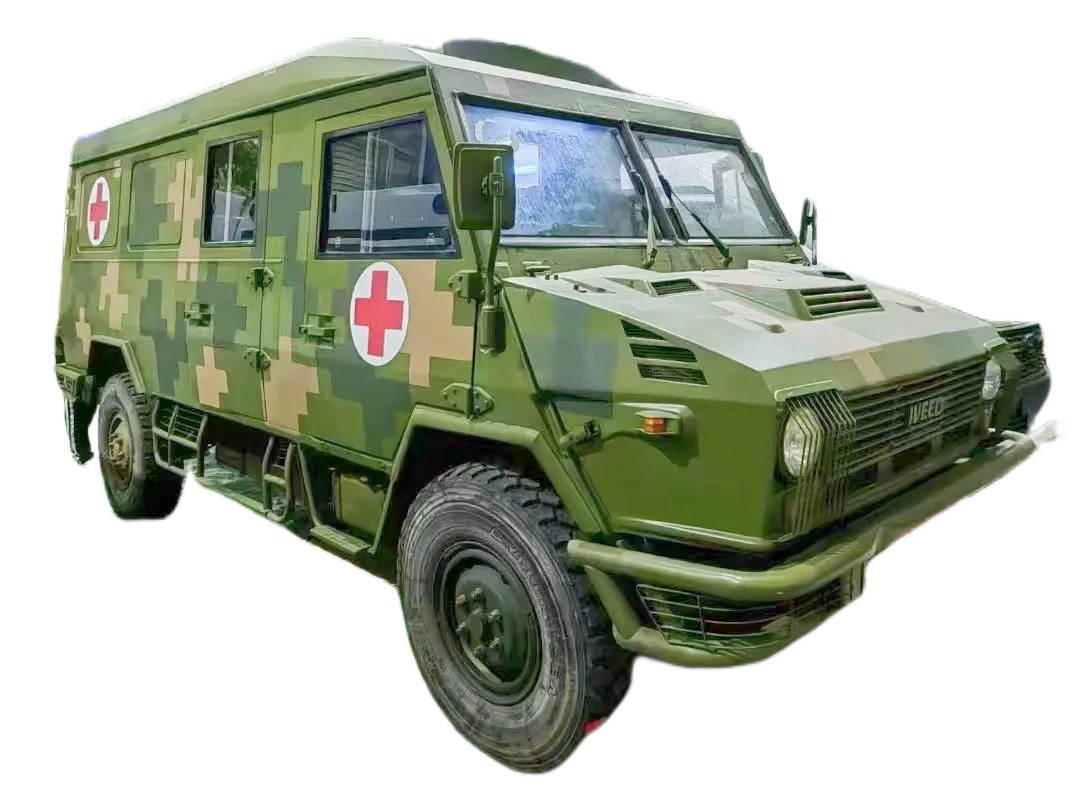

1. Structural form
Vehicle model: NJ2046SFD5G off-road type
Drive type: 4×4 (part-time four-wheel drive)

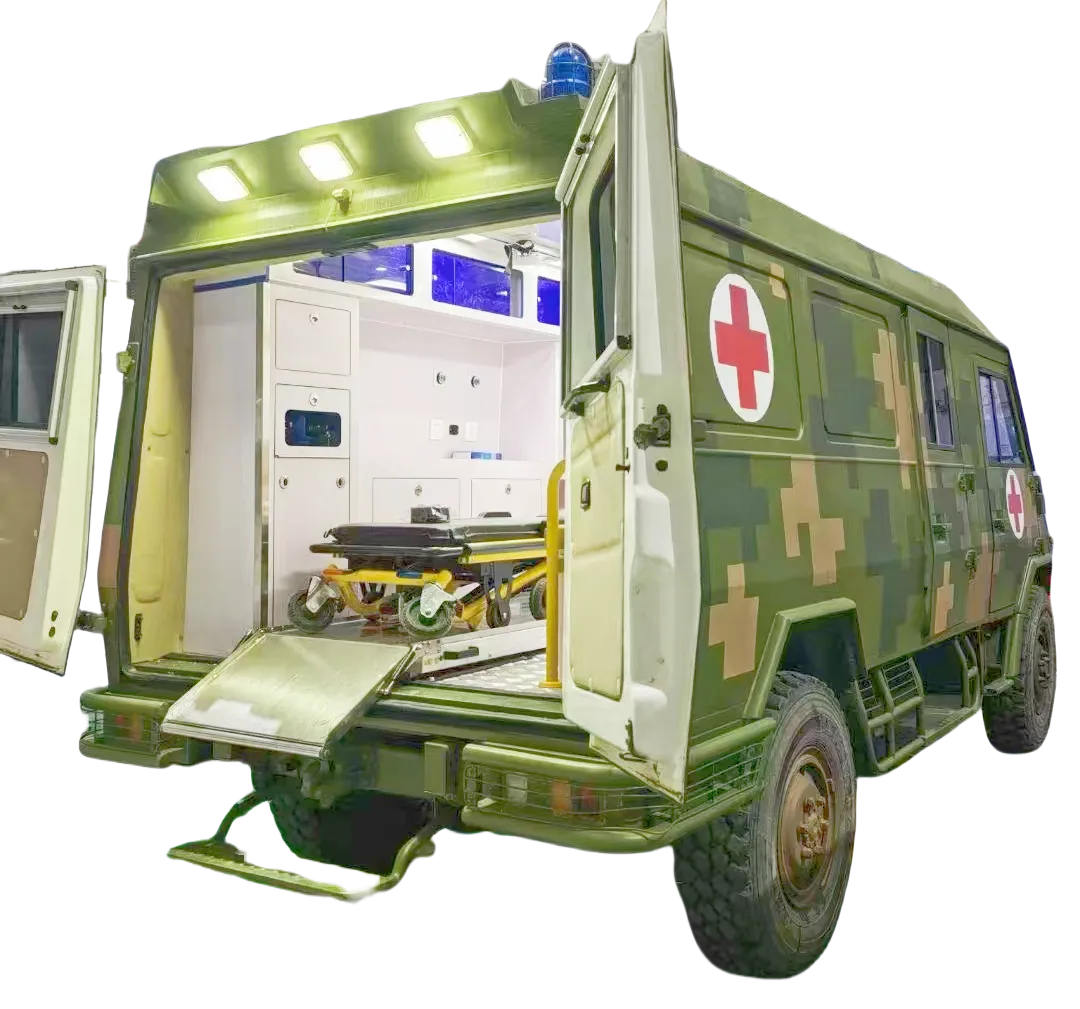

Body type: short head, hardtop, rear double doors, no side sliding doors
Number of seats: 1 + 11
2. Dimension parameters
Dimensions (length × width × height) mm: 5800×2130×2170
Wheelbase mm: 3310
Front overhang / rear overhang mm: 1010/1480
Front track / rear track mm: 1670/1670
Approach angle / departure angle (°): ≥39/30
3. Mass parameters
Total mass kg: 4450
Curb mass kg: 3510
Front / rear axle load (full load) kg: 1900/2500
4. Performance parameters
Rated power Kw: 87/3600
Maximum torque N・m/r/min: 269/1800
Maximum speed km/h: 80 - 100
Minimum stable speed km/h: 2.5
Maximum climbing grade %: ≥60
Minimum ground clearance mm: ≥260
Minimum turning diameter m: ≤15
Longitudinal passing angle (°): ≥29
Mountain crossing width mm: ≥650
Vertical obstacle crossing height mm: ≥280
Wading depth mm: ≥750
V. Main assemblies
Engine: SOFIM8142.43 inline four-cylinder, water-cooled, direct injection turbocharged, National II emission standard
Transmission: 2826, five-speed gearbox
Transfer case: Borg-Warner 4706 chain transfer case
Tire: 255/100R16
VI. Main configuration
No ABS, optional air conditioning, no airbags, two front and rear differential locks, high-speed and low-speed four-wheel drive, no differential on the front and rear axles The three-lock function can be quickly realized and right-hand vehicle models can be customized.
