1. Chassis configuration: It uses the Dongfeng Tianjin DFL1160BX1V body, equipped with Dongfeng Cummins ISB180 50 engine 180 horsepower, National V emission standard, wheelbase 3800, 4200, 4500, 4700 (mm), curb weight 8.3 tons, rated load mass 0 tons, fifth-speed gearbox, original air conditioner, the car is yellow card, please pay attention to the restricted sign on urban roads.

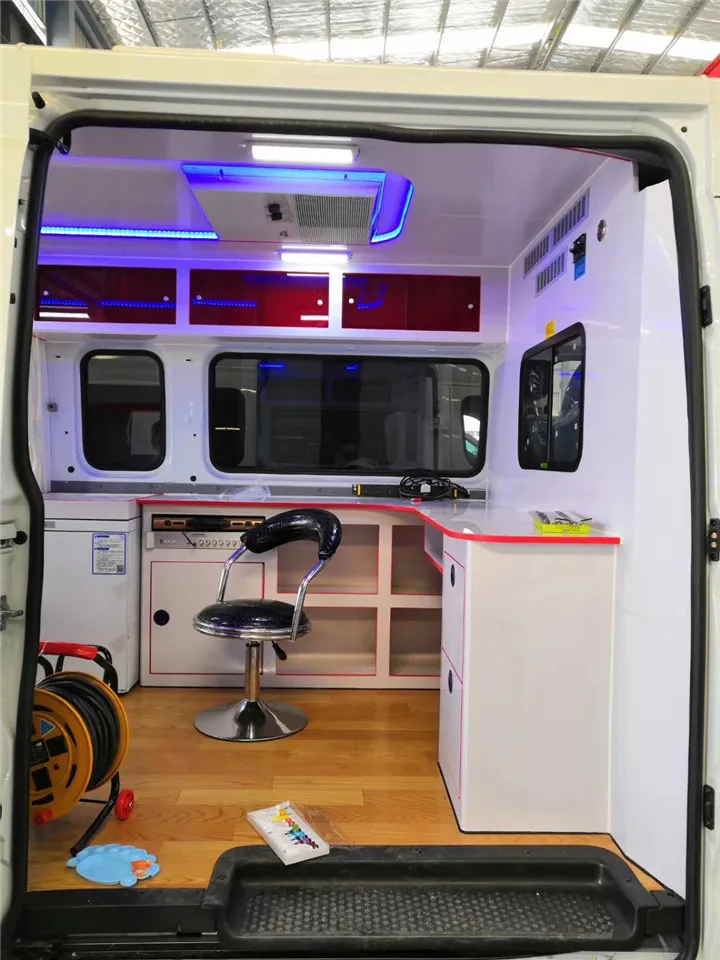

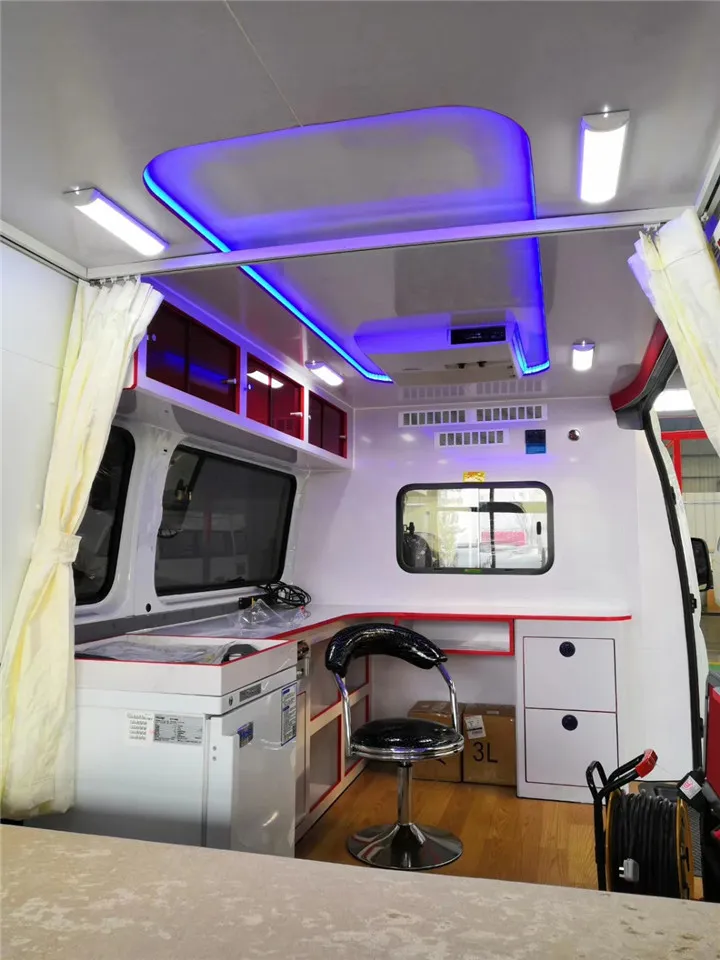

2. Upload configuration: 1. The body can be sprayed or pasted with promotional text and logos; some windows can be added or closed on both sides of the body. The top is closed and cannot be opened. 2. Special devices: blood refrigerator, LED screen, TV, power system, sofa, rest bed, and the rear LED screen is optional. 1. The car body can be sprayed or pasted with promotional texts and logos; some windows can be added or closed on both sides of the car body. The top is closed and cannot be opened. 2. Special devices: blood refrigerator, LED screen, TV, power system, sofa, rest bed, and the rear LED screen is optional.
3. Optional configuration:
4. Other instructions:
The vehicle issuance of: regular chassis certificate, vehicle certificate, national unified motor vehicle household invoice, vehicle-access tools, vehicle warranty manual, instruction manual, national service station list, etc. It makes it easy to get on the household, convenient, fast and worry-free!
| Vehicle technical parameters | |||
| Vehicle Name: | CLW5080XYL5 medical examination medical car | Announcement batch: | 292 |
| Product trademark | Cheng Liwei Card | Product number | 20170122 |
| Vehicle Model: | CLW5080XYL5 | Directory serial number: | (17)74 |
| Exemption from inspection: | release date: | 20170122 | |
| Total mass | 8495(Kg) | Volume: | |
| Rated load quality | (Kg) | Curb mass | 8300(Kg) |
| External dimensions | 8430,8230,7930,7530×2500×3610(mm) | Cargo compartment size | ××(mm) |
| Rated passenger | (people) | Total mass of quasi-torch | (kg) |
| Cab: | Front passengers: | 3 (person) | |
| Anti-lock system: | have | Mass load utilization coefficient | |
| Fuel type: | diesel fuel | Emission standards: | GB3847-2005, GB17691-2005 National V |
| Approach angle/departure angle: | 15/11(°) | Front/rear overhang: | 1430/2300(mm) |
| Number of axes: | 2 | Wheelbase: | 3800,4200,4500,4700,5000(mm) |
| Tire count: | 6 | Tire specifications: | 9.00-20,9.00R20,10.00-20,10.00R20,10R22.5,275/80R22.5,275/70R22.5,295/80R22.5 |
| Front wheel pitch (mm): | 1880,1900,1920 | Rear wheel pitch (mm): | 1800,1860,1820 |
| Axle load: | 5800/10000 | Maximum speed: | (km/h) |
| other | 1. The car body can be sprayed or pasted with promotional texts and logos; some windows can be added or closed on both sides of the car body. The top is closed and cannot be opened. 2. Special devices: blood refrigerator, LED screen, TV, power system, sofa, rest bed, and the rear LED screen is optional. 3. The side protection and rear protection of the vehicle are skirt-type structures, and the side and rear skirts interfere with the protection, so protection can be exempted. The side skirt is 350mm from the ground. The height of the rear skirt plate is 440mm from the ground. 4.ABS model: 3631010-C2000,4460046440; Manufacturer: Dongke Noel Commercial Vehicle Braking System (Shiyan) Co., Ltd., Weibco Automobile Control System (China) Co., Ltd. 5. Optional cab with the chassis. The correspondence between the vehicle length/wheelbase (mm) is: 8430/4700, 8230/4500, 7930/4200, 7530/3800. | ||
| Chassis DFL1160BX1V technical parameters | |||
| Chassis model | DFL1160BX1V | Chassis Enterprise: | Dongfeng Commercial Vehicle Co., Ltd. |
| Number of tires | 6 | Number of spring sheets: | 7/9+6,8/10+8,10/11+10 |
| Tire specifications: | 9.00R20 16PR,10.00-20 16PR,10.00-20 18PR,10.00R20 14PR,10.00R20 16PR,10.00R20 18PR,10.00R20 18PR,10R22.5 16PR,275/80R22.5,275/70R22.5 18P | Turning Form: | steering wheel |
| Front wheel pitch: | 1880,1900,1920 | Rear Wheel Range: | 1800,1860,1820 |
| Chassis emission standards: | GB3847-2005, GB17691-2005 National V | ||
| Fuel type: | diesel fuel | batch: | 311 |
| Engine model | Engine Manufacturing Enterprise | Displacement (ml) | Power (kw) |
| ISD210 50 ISD190 50 ISD180 50 EQH180-52 EQH180-53 ISB180 50 ISD270 50 ISB210 50 ISB190 50 | Dongfeng Cummins Engine Co., Ltd. Dongfeng Cummins Engine Co., Ltd. Dongfeng Cummins Engine Co., Ltd. Dongfeng Commercial Vehicle Co. , Ltd. Dongfeng Commercial Vehicle Co., Ltd. Dongfeng Cummins Engine Co., Ltd. Dongfeng Cummins Engine Co., Ltd. Dongfeng Cummins Engine Co., Ltd. Dongfeng Cummins Engine Co., Ltd. | 6700 6700 4500 4752 4752 5900 6700 5900 5900 | 155 144 132 132 132 132 198 155 140 |
| Identify the company: | Changzhou Huarisheng Reflective Materials Co., Ltd. | Vin Vehicle Identification Code: | LGAX2B13×××××××××××× LGAX2A13××××××××× LGAX2B12××××××××× LGAX2A12×××××××××× LGAX2C13××××××××××× LGAX2C12××××××××××× LGAX2A14×××××××××××× LGAX2B14××××××××××× |
